Mid-Drive Motor250W -
100 N·mMax Torque -
500 WhBattery -
Suspension fork120 mm -
135 kmRange -
125 kgMax load
Galaxy M
€2.299,00
Select Accessories
Select Accessories
-
Mid-Drive Motor250W
-
100 N·mMax Torque
-
500 WhBattery
-
Suspension fork120 mm
-
135 kmRange
-
125 kgMax load
-
Ship within 1-2 business days.
-
2-Year Warranty
-
Mid-Drive Motor
250W
-
Schwalbe Tyres
-
Shimano CUES
9-Speed Shift Gears
-
500 Wh
Battery
-
Selle Royal
MTB-Sattel
-
100 N·m
Max Torque
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
-
Smooth Shifting By Shimano CUES 9-Speed Drivetrain
Galaxy M is built for adventurous riders who demand both efficiency and control. Equipped with the latest Shimano CUES 9-speed drivetrain, it delivers a silky-smooth shifting experience, even on steep climbs or uneven trails.
-
Tackle Tough Trails With Confidence
Galaxy Venus Plus System combines a 250W mid-drive motor with up to 100 N·m of torque, delivering powerful yet intuitive pedal assistance even on steep climbs.With a 500Wh battery offering up to 135km of max range, Galaxy M is engineered for long-distance exploration and technical terrain.
-
Absorbs Bumps. Enhances Stability.
With 120mm of travel, Galaxy M’s front suspension absorbs rocks, roots, and bumps with ease, keeping the ride smooth, stable, and in control — even on the most rugged mountain paths.
Discover Galaxy M
-
MTB-Level Components
Equipped with Shimano 9-speed, SR Suntour 120mm suspension fork, and Schwalbe tyres for control, comfort, and durability.
-
Extended Range
A 500Wh detachable battery ensures up to 135 km with PAS, giving you the freedom to explore mountain trails all day.
-
Powerful Trail Motor
The 250W mid-drive motor with 100N·m torque delivers strong, responsive support on steep climbs and rough terrain.
-
Backlit TFT Color Display
The display provides clear and real-time updates on your ride. You can always quickly check the speed, battery life, and other riding data.
-
Shimano CUES 9-Speed Shift Gears
Equipped with the latest Shimano CUES 9-speed gear system, it offers a silky smooth shifting experience—even on steep climbs or uneven terrain.
-
SR Suntour Front Fork
120mm travel suspension fork absorbs bumps and vibrations to reduce hand and arm fatigue. Enjoy a smoother ride whether you're cruising city streets or hitting light trails.
-
Easy-Open, Eco-Friendly Packaging
Made from recyclable materials with a side-opening design for simple setup. Includes DIY cutout panels for creative reuse—fun for the whole family.
Specifications
-
ELECTRONICS
Motor: 36V 250W Mid Motor (Venus Plus)
Sensor Type: Torque Sensor
Display: Color LCD Display
Battery: 500Wh Lithium Battery
Charger: 42V 100-240V 2A
Lights: Front white LED, Rear red LED, Turning light
Controller: Smart Controller

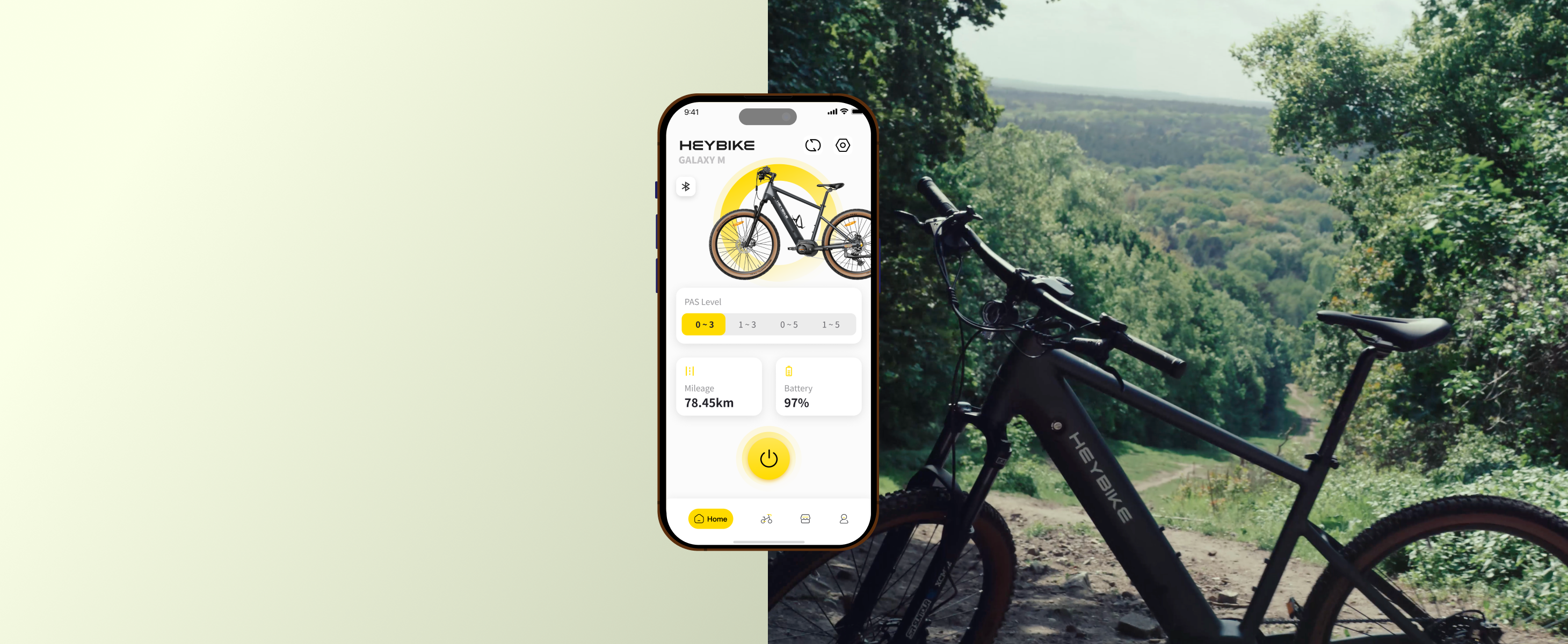

APP: Heybike App Bluetooth -
COMPONENTS
Frame: 6061 Aluminum Alloy 17"/19"/21"
Tyres: Schwalbe 27.5"×2.35" SMART SAM/Bronze Sidewall
Speed Gears: Shimano CUES 9SP 11-41T
Brake: Shimano MT-200 Hydraulic Disc Brakes
Front Fork: SR Suntour XCM32 DS HLO 15AH2 27.5 T:120
Handlebar: Promax HB-3188DB 680mm
Chain: KMC eGlide
Saddle: Sello Royal MTB saddle
Seat post: Zoom SPS-521 Aluminium alloy
Pedal: HF-808 Aluminum alloy -
PERFORMANCE
Max speed: 25 km/h
Max Torque: 100 N·m
Range: Up to 135 km with PAS Mode
Recharging Time: 6-8 h
Weight: 24 kg
Max. Load: 125 kg -

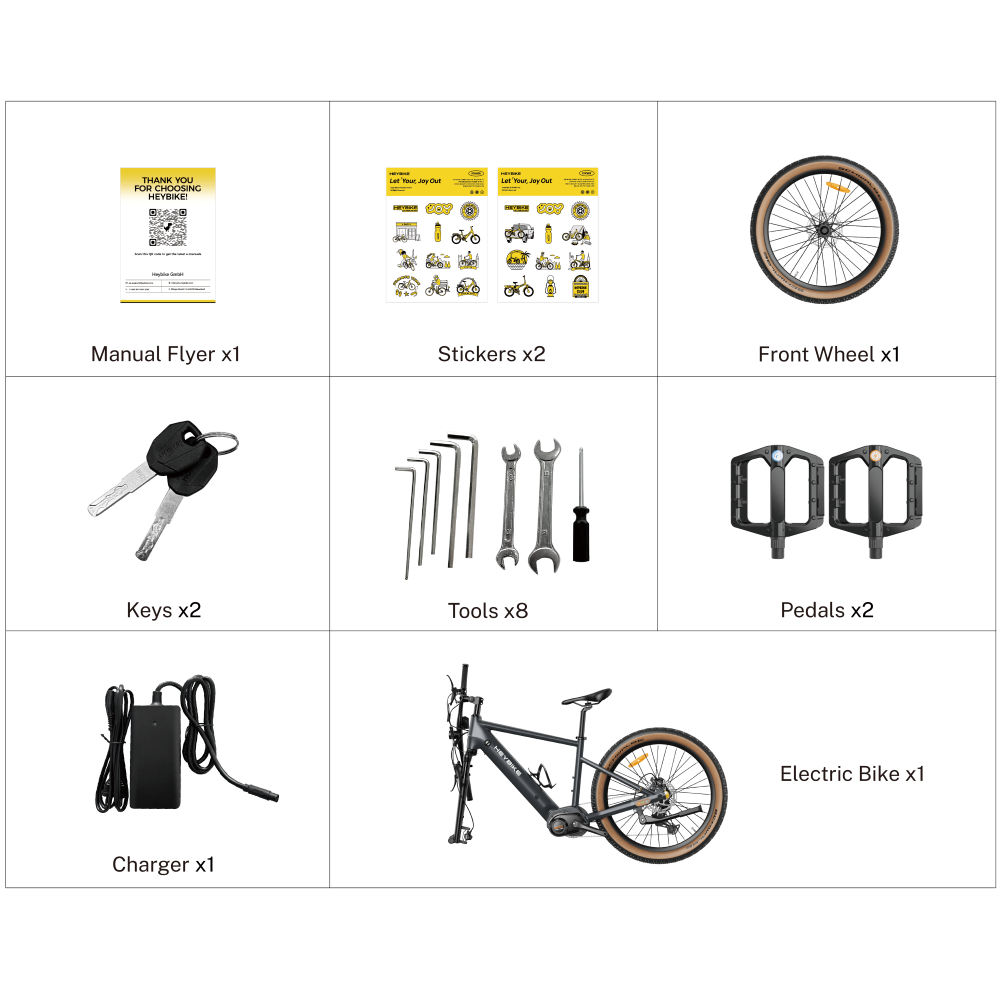

What's in the box?
A Manual Flyer x1
B Stickers x2
C Front Wheel x1
D Keys x2
E Tools x8
F Pedals x2
G Charger x1
H Electric Bike x1

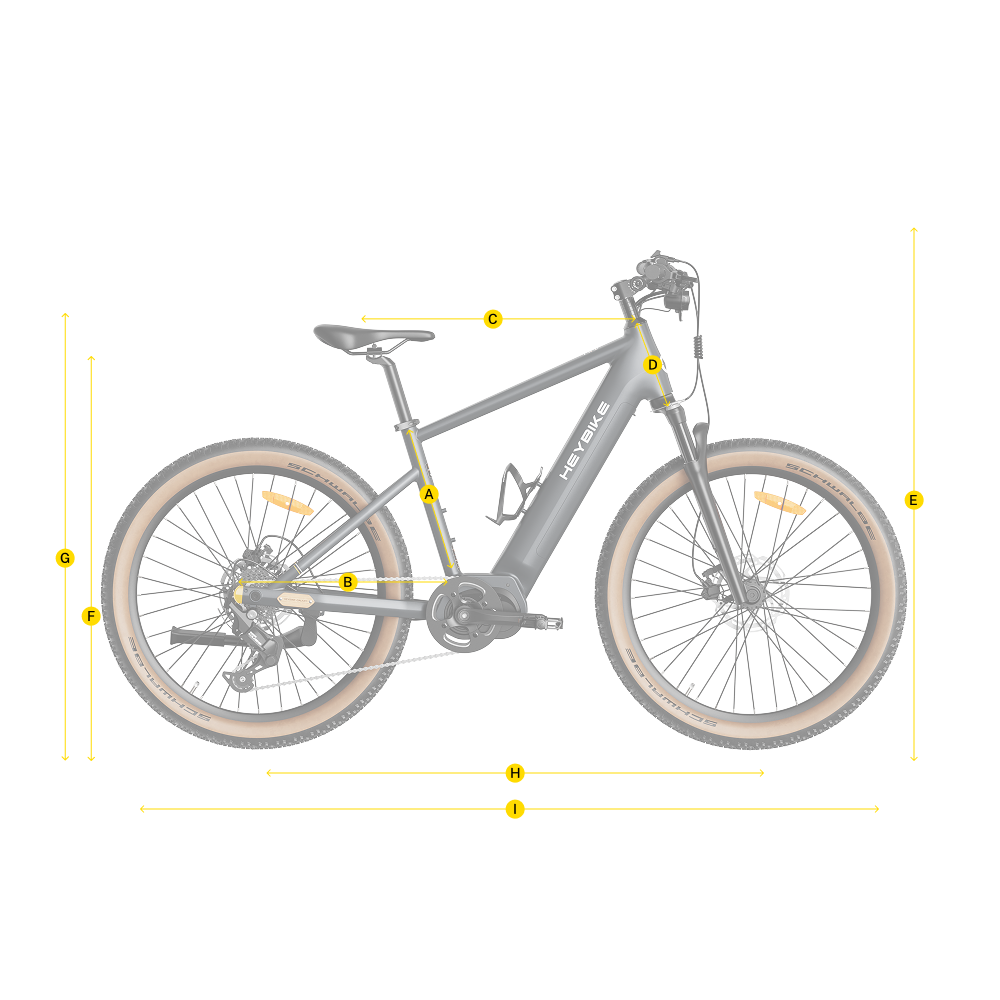

Geometry
A. Seat Tube: S: 43 cm, M: 48 cm, L: 53 cm
B. Chainstay: 47.5 cm
C. Top Tube: 59 cm
D. Head Tube: 18 cm
E. Handlebar Height: 110.5 cm
F. Minimum Seat Height: 78 cm
G. Maximum Seat Height: 93 cm
H. Wheelbase: 119.5 cm
I. Total Length: 193 cm
FAQ
Does Galaxy M support a child or pet trailer?
Yes, all Galaxy models support baby or pet trailers.
What are the advantages of Shimano CUES transmission shifting components?
They offer smoother gear shifts, higher durability, and better trail performance.
What makes Galaxy M suitable for trails?
It has 120mm travel hydraulic front suspension for handling rugged terrain.
What type of motor does Galaxy M use?
It features a powerful mid-drive motor designed for off-road performance.
